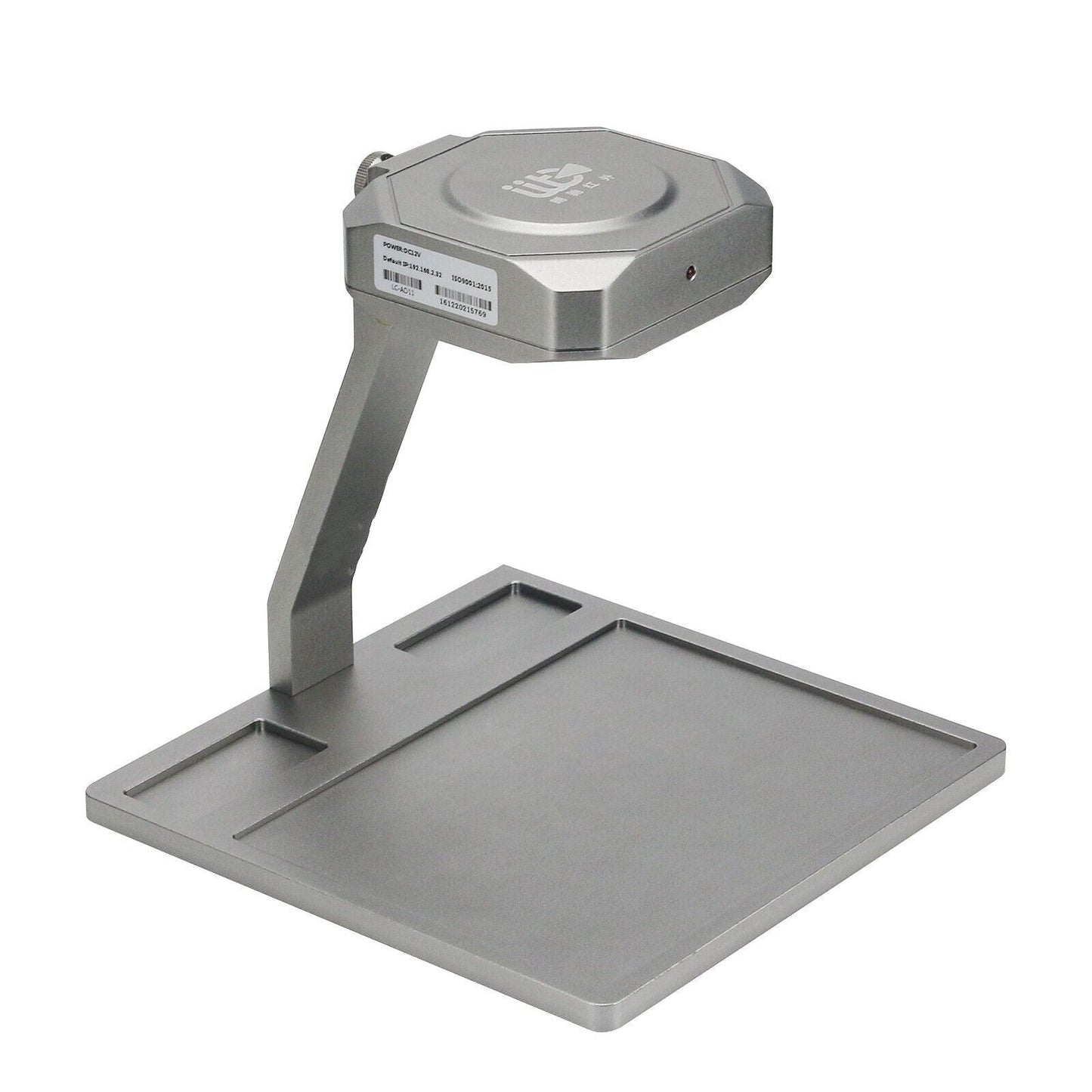

Laureii thermal camera is designed for the quick temperature checks on whole circuit board, and translates into a clear visual image. With the sensitive and accurate 160×120 thermal sensor, details of each electronic components and subtle temperature difference will be displayed in the screen. One-button-seek and comparison analysis functions will help you find out faulty parts in seconds. It greatly reduces the your guesswork or testing, to resolve leakage or short problems.

PRODUCT SPECIFICATIONS:
1.Thermal:
Sensor technology:Uncooled VOx Microbolometer
Resolution:160*120
Spectral band:7.5μm~13.5μm
FOV:57°×44°

2.Visible Camera
Resolution:1920*1080

3.Therma Camera:
Display mode:Visible light imaging / infrared thermal
imaging / dual light fusion imaging
Video output:RJ45
Image storage format:JPEG
Video storage format:MP4

4.Physical:
Fixture dimension:181*180*170mm
Weight:1.1kg (including fixture base)
Installation:Removable installation

5.Power:
Input voltage:12V DC
Power consumption:2.2W, ≤3W

6.Operating Environment:
Storage temperature:-20℃~60℃
Operating temperature:0℃~50℃
Humidity:95% RH

7.Temperature Measurement:
Temperature measurement function:Full-scale temperature measurement
Measurement distance:12.5cm
Measurement accuracy:±5℃ or ±5%
Measurement range:0℃~400℃





Post Your Needs Information

LINCSEEK Shortcam Infrared Thermal Camera Diagnosis Instrument Cellphone Repair Detection

Brand: Oriwhiz Replace Parts

Availability:500 pieces remain(Low stock) will be shipped within 24 hours

Product Code: 1100620

Leadtime: Find estimated receipt time in the shopping cart

$434.52 434.52
